Dielines Explained: Why Your Box Design Looks Wrong When Folded
Share
Boxes are the format where flat design and physical reality diverge most sharply. A can curves predictably. A pouch flexes. A box folds — and folding rearranges everything.
What a dieline actually is
A dieline is the flat blueprint of the box: every panel, flap, fold, and cut laid out as one shape. Your artwork sits on top of it.
The critical thing to understand is that panels adjacent on the dieline are often not adjacent on the finished box, and panels far apart on the dieline may end up next to each other. Artwork that flows continuously across a dieline can arrive at the printer looking correct and come back as a box where the design jumps.
Always get the dieline from your box supplier before designing. Never build one from measurements — the allowances for material thickness, tuck depth, and glue area vary by manufacturer and board weight.
Where artwork gets lost
Glue flaps. One vertical strip gets glued under another panel and disappears entirely. Anything printed there is wasted, and worse, ink on a glue area can weaken the bond.
Fold lines. Board cracks slightly at every fold. Heavy solid colour crossing a fold shows a white line. Dark boxes suffer most, which is why so many premium black boxes are made from dyed board rather than printed white board.
Tuck flaps. Visible when open, hidden when closed. Good place for a message to the customer, bad place for anything the shelf needs to see.
Bleed at every edge. Cutting tolerance on die-cut board is looser than on paper. 3mm is often not enough — ask your supplier.
The panel that actually sells
Retail boxes are usually shelved showing one face. Which face depends on the shelf, and you may not control it.
Designing all panels equally is expensive and unnecessary. Designing only the front and neglecting the sides is risky if the product ends up turned. The workable compromise: one strong front, sides carrying the brand mark and product name in a simplified form, back carrying the information.
Board colour changes your palette
Kraft board is brown. Every colour printed on it shifts warm and loses brightness. Whites are impossible without an opaque underprint.
This is not a limitation to fight — kraft is chosen deliberately for its texture and sustainability signalling. But designing on a white artboard and printing on brown board produces a result nobody expected. If the box is kraft, design on a kraft-coloured background from the start.
Seeing it folded

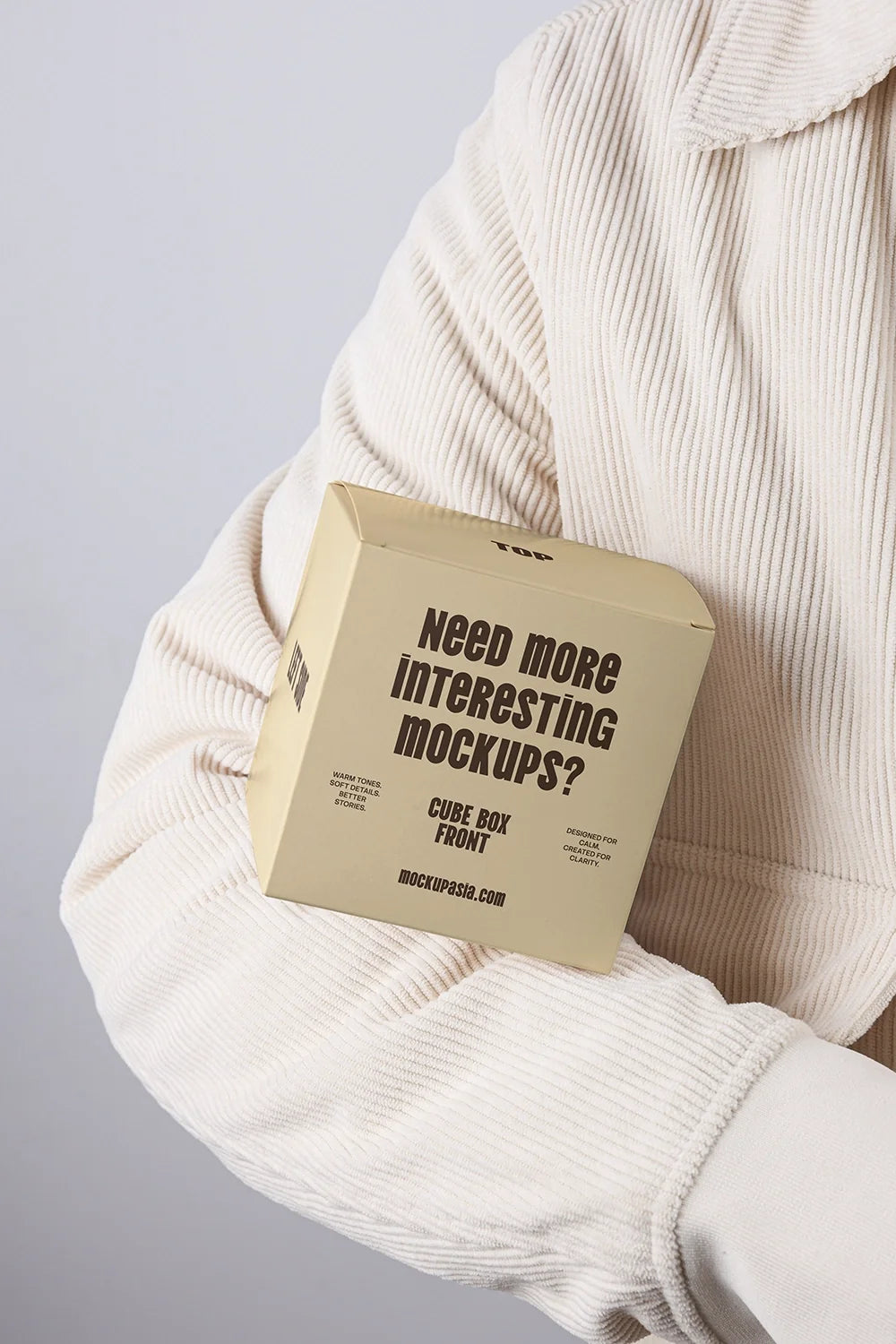

A dieline proof shows the flat. A physical sample shows the truth, but takes days and costs money for every iteration. A realistic 3D mockup sits between the two — enough to catch a logo landing on a fold or a panel reading wrong before anything is cut.
